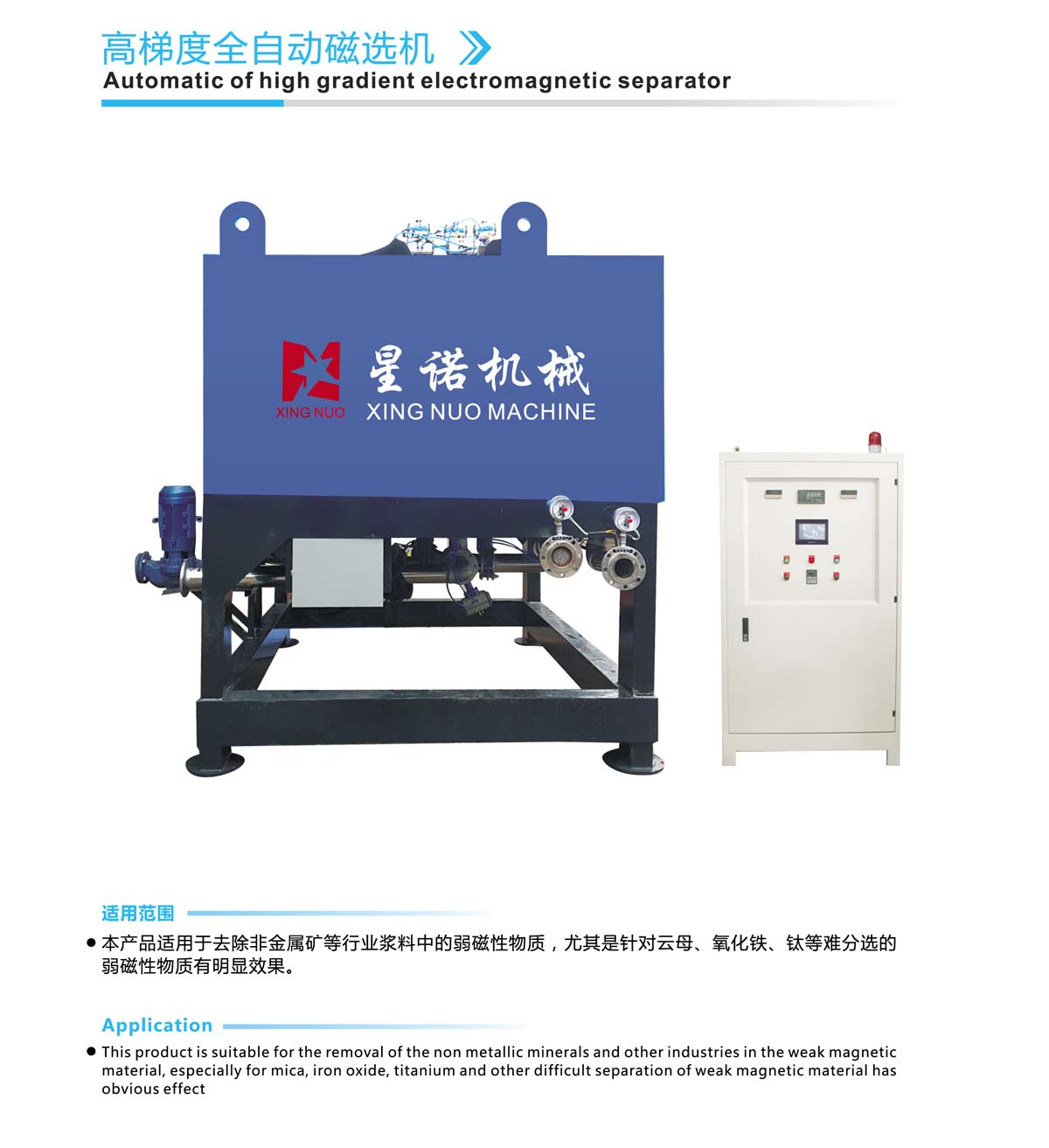

Automatic of high gradient electromagnetic separator

Application

This product is suitable for the removal of the non metallic minerals and other industries in the weak magnetic material, especially for mica, iron oxide, titanium and other difficult separation of weak magnetic material has obvious effect

Features

·High gradient magnetic field, except for iron effect

·Using the latest horizontal magnetic circuit design, the magnetic field strength is higher.

Products made of purple copper induction coil,direct water cooling, Higher stability

·Fully automatic operation, no manual operation, easy to take off the iron, more complete, no residual iron powder

It uses vibration motor together with hing-pressure wate pump for unwanted-iron discharge,thus make the remove cleaner and easier .

·The brake valve is using imported raw materials and manufactured, no leakage, low wear, low flow resistance, low air consumption;

·The magnetic medium mesh using stainless steel high magnetic conductive sheet and the highest magnetic field up to 30000GS, broken after the excitation coil power without residual magnetic for iron removal. ;

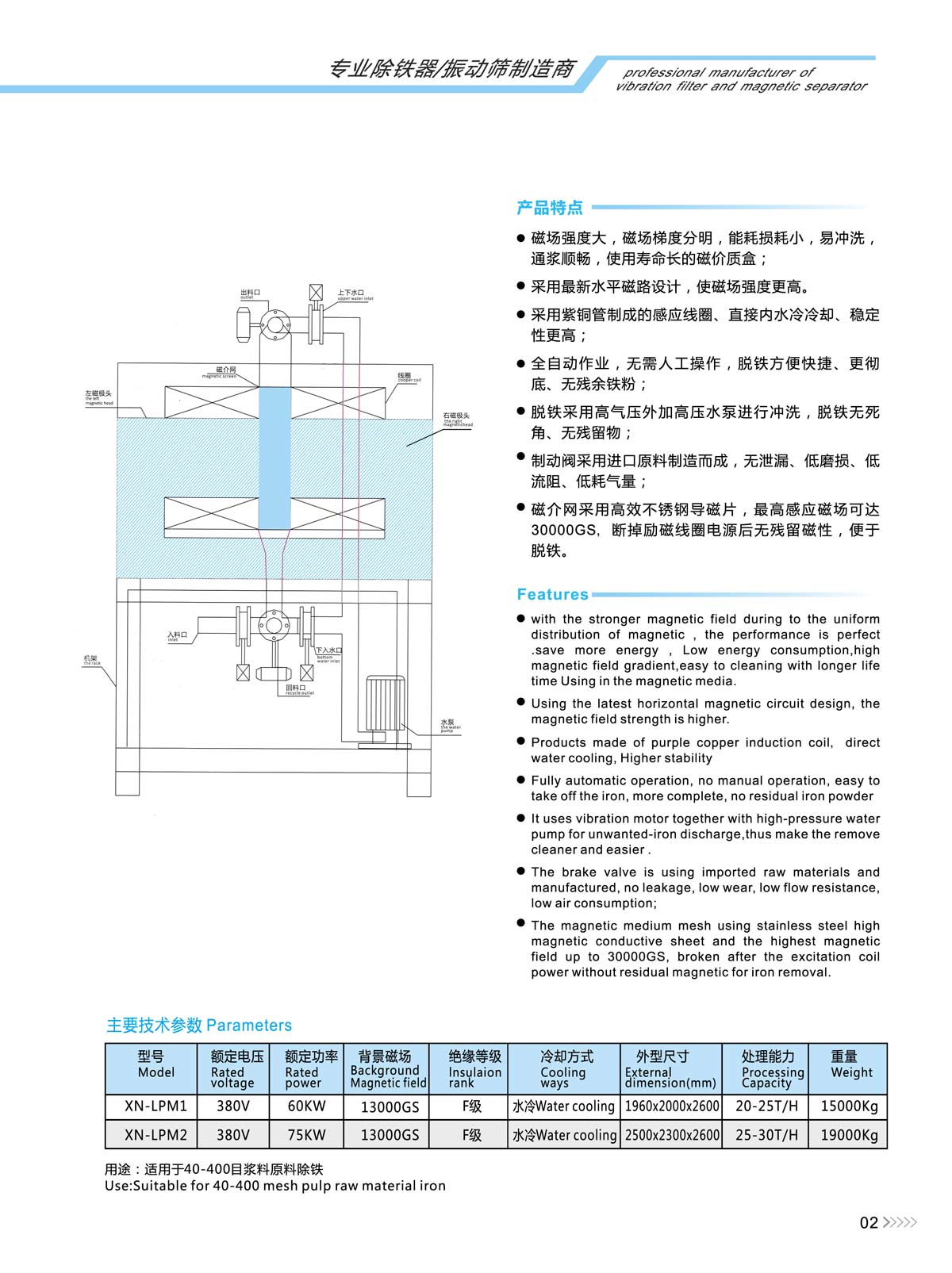

机器参数:
